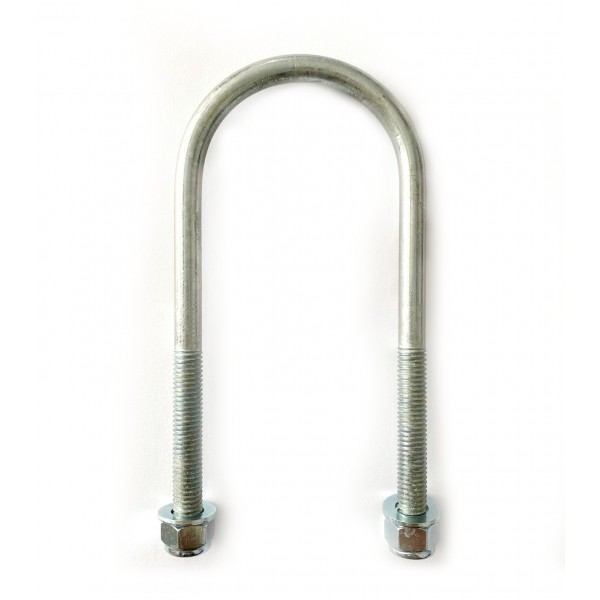

M8 Round Electro-Plated U Bolts 50MM Width X 150MM Length

M8 Round Electro-Plated U Bolts 50MM Width X 150MM Length

Product Code: UBOLT-EP-RD-50150-8-01
Availability:
In Stock
Our Price: £4.21 Ex Tax: £3.51
2 or more £3.79
4 or more £3.79
6 or more £3.37
8 or more £3.16
10 or more £2.95
Description

M8 Round Electro-Plated U Bolts 50MM Width X 150MM Length

M8 Round Electro-Plated U Bolts 50MM Width X 150MM Length

A U Bolt is an industrial fastener in the shape of the letter U with two threaded legs extending from a curved base. U Bolts can be used in a range of applications including supporting pipework, attaching a part of a beam or wall, agriculture and livestock trailers, boat trailers, fence posts, installation of TV aerials and satellite dishes as well as many more applications.

The threaded legs of the bolt are designed to be used with nuts and washers. U Bolts can also be used with a backplate spanning across both threaded legs to make this more secure in some settings. We supply these back plates separately and can be found here.

Our U Bolts are electro-plated as standard. We carry out this process on all our bolts to protect against rust, corrosion and moisture. This also ensures that our customers receive a smooth and brighter finish for a high quality appearance.

Our U Bolts are measured from the inside of the bolt to the bottom of the thread, not from the centre. Please see attached information on measuring U Bolts prior to your order.



Data Sheet

A

Design

Standard U Bolt

B

Inside Width

50mm

C

Inside Height

150mm

D

Material

Zinc Plated Steel

E

Product Type

U Bolt - Round

F

Thread Length

60mm

G

Thread Size

M8
